Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Nama: | Ember multi guna standar ISO | Kode: | 1690200063 |
|---|---|---|---|
| Berat lampiran: | 763 kg | Berat operasi: | 10500 kg |
| Cahaya Tinggi: | construction equipment parts,heavy equipment parts |
||

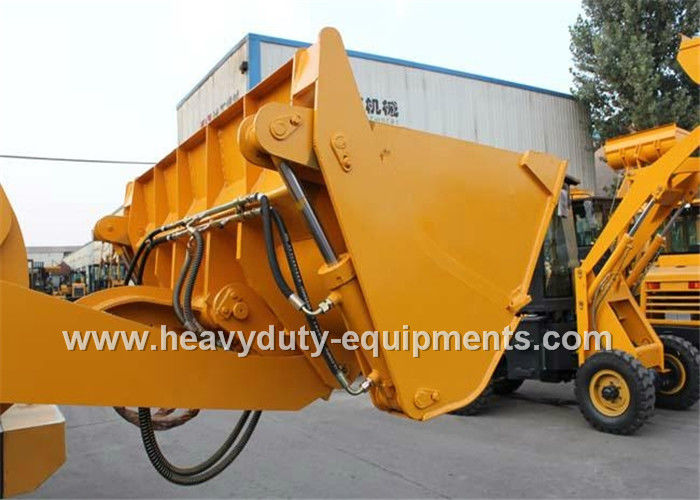

Coupler cepat multi guna ember standar ISO dengan beban 3t
Spesifikasi:
| Nama | Coupler cepat Standar ISO ember multi guna | Dumping jarak (Mm) | 1198 |
| Kode | 1690200063 | Radius min.steering (Lampiran) (mm) | 5192 |
| Kapasitas ember (m3) | 1.8 | Dimensi keseluruhan WL (LxWxH) (mm) | 7450x2510x3234 |
| Berat badan lampiran (kg) | 763 | Radius min.steering (Ban) (mm) | 5381 |
Dimensi lampiran (LxWxH) (mm) | 2520x1144x1155 | Kekuatan Max.breakour (KN) | ≥80 |
| Nilai beban (t) | 3.0 | Bobot operasi (kg) | 10500 |
| Max.dumping heght (mm) | 2804 | ||
| Model yang disarankan dari Wheel loder | LG938L | ||
Aplikasi:
Alat ukur serbaguna cepat (standar ISO), dengan fungsi pemuatan, pelulingan, gesekan dan kliping, dapat dilengkapi dengan model berikut: LG918, LG936L, LG938L, LG956L, LG958L.
